SR4016 Track Shotcrete Robot Parameter
1. Whole Equipment
Overal dimension	mm	7898x2650x3310 mm
Overall weight	kg	16100 kg
Driving	-	4 WD
Engine	Kw	103
Wheel base	mm	4300
Track base	mm	2218
Maximum speed	Km/h	20
Maximum climbing angle	°	30
Ground clearance	mm	310
Minimum turning radium	m	11
Braking distance	m	5 (20km/h）
2. Telescopic Spraying Arm
Vertical spraying reach	m	16.5m
Horizontal spraying reach	m	13.5m
Max. spraying depth	m	7.5m
Number of arm extensions	-	2 telescopic
Big arm rotation	°	270

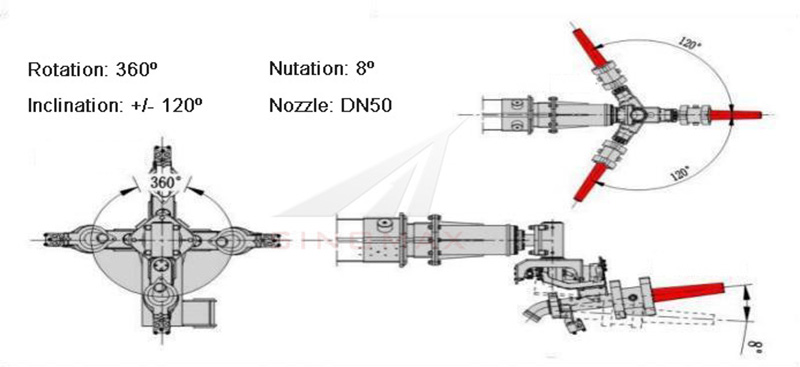

3. Spraying Head
Rotation	°	360
Inclination	°	±120
Nutation	°	8
Nozzle	mm	DN50
4. Concrete Pump
Max. Theorectical capacity	m³/h	40
Type	-	Two piston, hydraulic
Pumping and spraying driving motor	Kw	65kw
Voltage	V	380 (could be customized)
Oil cylinder	mm	ф 100x70x1200
Concrete cylinder	mm	ф 180x1200
Delivery pipe	mmm	ф 125~ф 90 reducing
Max aggregate size	mm	16
Concrete outlet pressure	Bar	80
Hopper capacity	L	400
5. Additives system
Additives flow	L/H	0-1000
Max. Working pressure	Bar	12
Driving mode	-	Variable frequency motor
Additives tank	L	1000
5. Control system
Control mode	-	Radio/Cable
Cable length	m	80
6. Cleaning system
Water tank	L	150
Drive mode	-	Hydraulic drive
